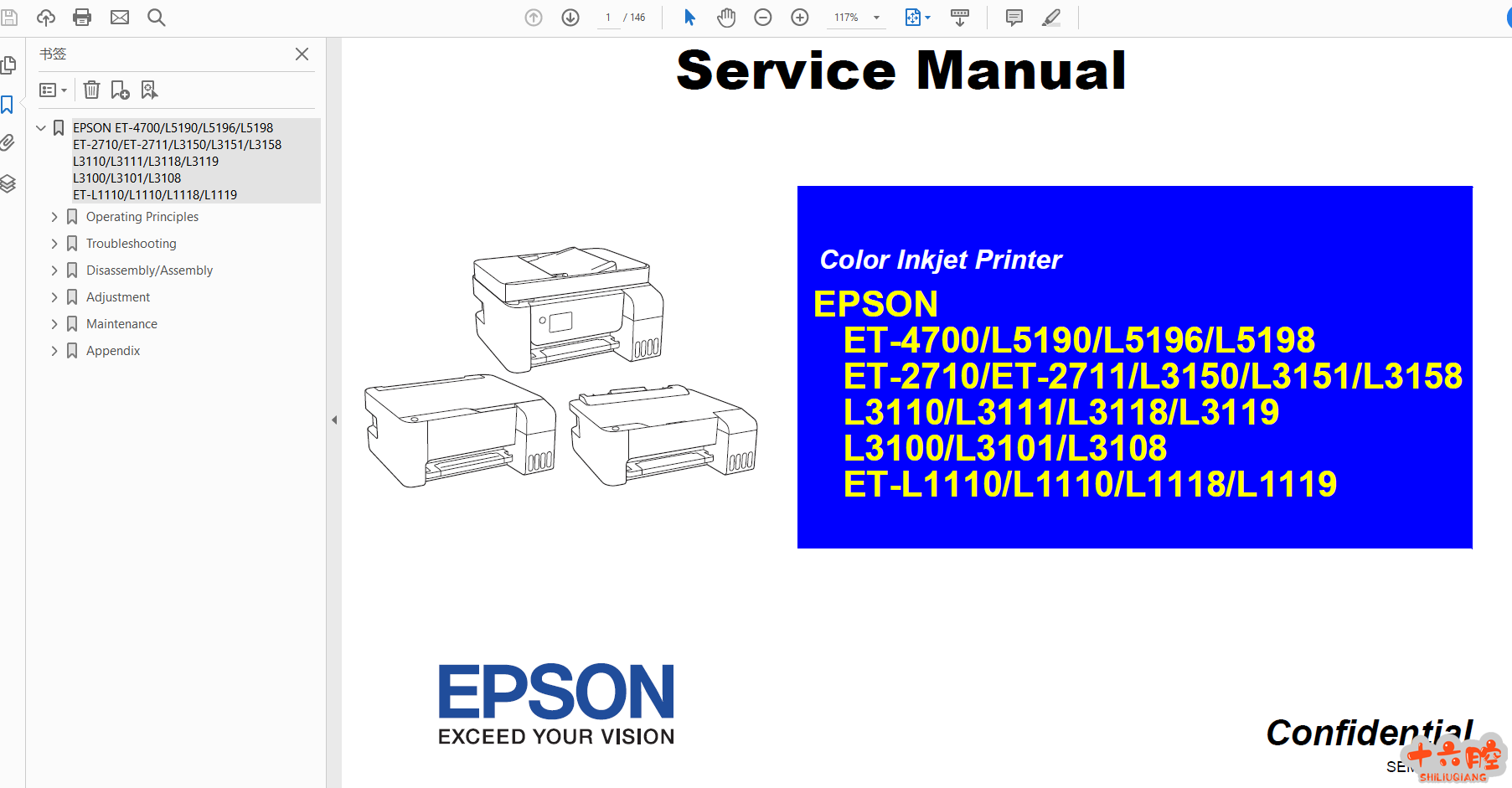

爱普生ET-4700/L5190/L5196/L5198,ET-2710/ET-2711/L3150/L3151/L3158,L3110/L3111/L3118/L3119,L3100/L3101/L3108英文维修手册ET-L1110/L1110/L1118/L1119
This printer employs a rear feeding mechanism and paper is loaded by the drive force of the PF Motor. Paper is fed inside the printer from the ASF Rear by the Shaft LD Assy. The ASF Rear is equipped with a Hopper, Paper Back Lever, Change Lever, Shaft LD Assy, and clutch. The Change Lever and the clutch work for transmitting a driving force from the PF Motor to the Shaft LD Assy and for not transmitting it. The Hopper and the Paper Back Lever driven by the cam on the LD Roller Shaft prevent multi-feed and ensure accurate paper feeding. Paper fed by the ASF Rear is conveyed by the PF Roller Assy and the EJ Roller which are included in the paper feeding mechanism. 链接：https://pan.baidu.com/s/1gWQJP2RK2Y7_-51HgaJpeQ 提取码：10sn |
爱普生L5190,5198,5196,3150,3158,3118,3119,3100维修手册
